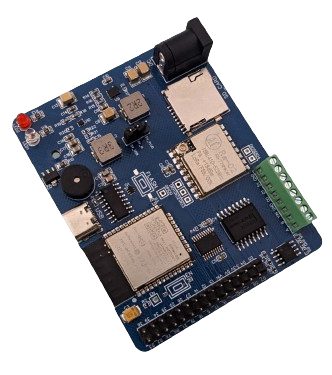

XION IOT LORA CORE

The development board is a versatile tool for IoT and embedded system projects, featuring a robust DC power jack, an SD card slot for data logging, and the LoRa Ra-02 module for long-range, low-power wireless communication. Powered by a high-performance microcontroller, it ensures efficient processing and smooth operation.

Microcontroller (ESP32)

LoRa Module (Ra-02)

Micro USB Port

SD Card Slot

Pin Headers

Debugging Interface

Power Management

Buttons and LEDs

Powering the Module

Use a USB-C cable to power the board through the USB-C connector.
The board can also be powered through the DC power jack (9V-12V).
Ensure that the power source is stable and provides sufficient current.
